| 所屬類型： |
紡機,非織造布機械 |
| 產品代碼： |
暫無 |
| 產品品牌： |
|
| 產品系列： |
|
|
|

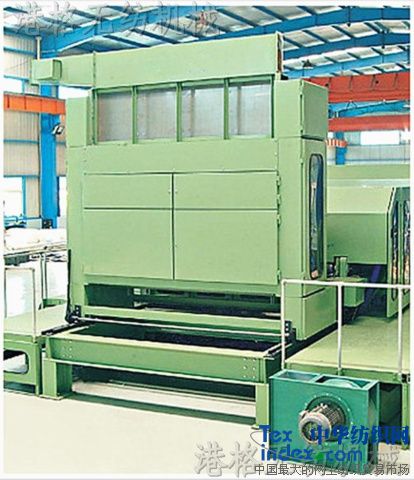

深圳市港格無紡機械科技有限公司——氣壓棉箱
氣壓棉箱用途特點：
本氣壓棉箱是國內最先進的喂棉機構，置于開松機后面，借輸棉風機的作用，將充分開松的纖維均勻填充到混棉箱機上棉箱，再經過一對羅拉及打手作用，以及循環風機吹風作用，在下棉箱產生均勻筵棉，再由一對軋輥輸出，供梳理機使用。
Characteristics of applications:
This machine is the most advanced apparatus in home country. It is located backwards from opening apparatusin order to deeply open and send uniformly to the storage of cotton with the help of winding effect of feeder and action of roller, beater and recycling winds. In the end, the sheet cotton made in bottom storage oven would be rolled out,to be carded in the following.
氣壓棉箱主要特征:
本機采用SCC控制技術自動控制，結合變頻器達到連續均勻喂棉的效果，并可通過下棉箱氣壓導流梳的風門調節來調整橫向均勻度,實現真正意義上的精確喂給。
The principle characteristic:
This machine is controlled by SCC system combined with variable frequency apparatus to feed continually and uniformly, furthermore the winding door with airpressured carding effect on bottom storage of cotton can improve the property of transverse uniformity. Above-mentioned would realize to feed accurately.
氣壓棉箱基本參數：
裝機總功率：10.75kw
工作幅寬：根據要求可分為1300 1600 1800 2000 2500(mm)
下棉箱寬度：據產量要求，下棉箱厚度可在50-125毫米之間調節。
CV值：＜3％
 |
|
